P31.25mm High Definition Transparent LED Display

Pixel Pitch31.25mm
Pixel Density1024 dot/m²
LED Type1 * RGB 3IN1 SMD3535
Brightness5000 (cd/m²)
Max. Power Consumption 600 (W/m²)
Ave. Power Consumption200 (W/m²)
Transparency80%
Viewing Distance8m~300m
Screen Weight3.6 kg/m²
Module Resolution16dots*256dots max.
Fire Protection RatingUL94-V0
IP RateIP67
Control SystemNovaStar
Viewing Angle120°(H)/120°(V)
Housing MaterialTransparent PC
Refresh Rate≥1920Hz
Gray Scale16 Bits
Working EnvironmentTemperature -30℃~+60℃，Humidity10~90% RH
Input (Working) VoltageAC110~ 240V, 50/60Hz (DC12V)
Scan ModeStatic Scanning
Processing ProtocolTTL (Break Point Resume)

Inquire Now

Features

transparent curtain mesh dsiplay

High Transparency

High transparency maximizes the natural light get inside of the building, flexible LED mesh screen also ensuring the screen has great ventilation and wind-resistance function.

flexible transparent led screen

Flexible Design

Ultra flexible design make it can be curved freely to achieve creative shapes like arch, circle, wave, customized size available. Bendable, shaped displays, coverage of various irregular structures.

detachable transparent led screen

Detachable Element

Removing the string directly from the flexible frame in front for quick and trouble-free maintenance. The strings can be also fixed as linear lighting separately in aluminum slot or in a independent bracket .

flexible transparent curtain- mesh

Fast Locks

Fast inter-panel locks make it quick and easy to set up and dismantle large-scaled screen, no tools required; Zipper quick lock system, The fast lock lock system makes your hanging job so easy even on the touring stage. Quick Installation

Anti-Fire & IP67 Waterproof

The Lamp body is sealed with silicone gel, Head and tail of the panel, with waterproof connectors.. Good Weather-resistance, is IP67 rated, UV-resistant, Housing and wire adopt Anti-fire material.

Accesories

Hanging Beam

Stainness-Steel Wire Rope

Stainness U-Shaped Buckle

Stainness-Steel Wire Tensioner

NovaStar Controller

Rain-proof Power Supply

transparent led display

Quick Installation

Fast installation on the stage to save your time and labour. No complex frame required, when fixing the huge mesh screen on the building facade.

System Connection

After Install

Projects

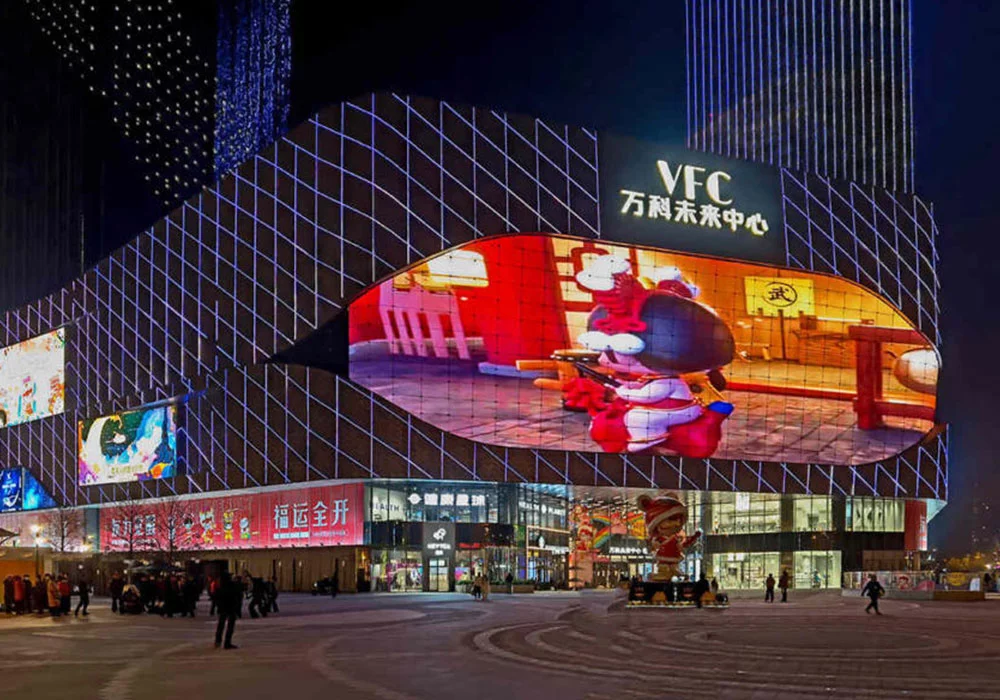

Commerical mall advertisement

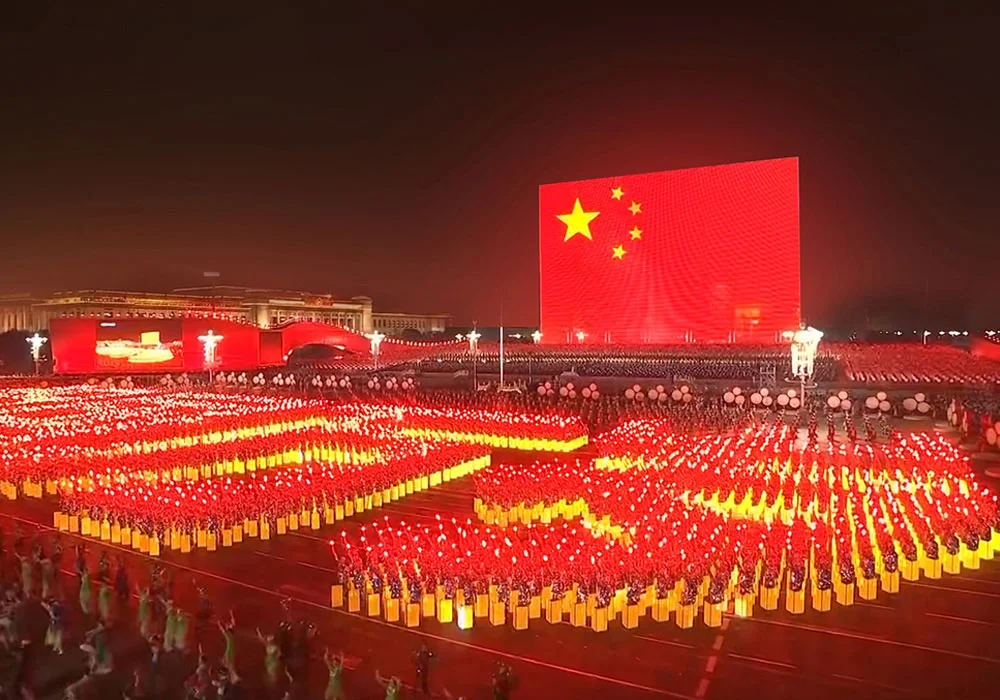

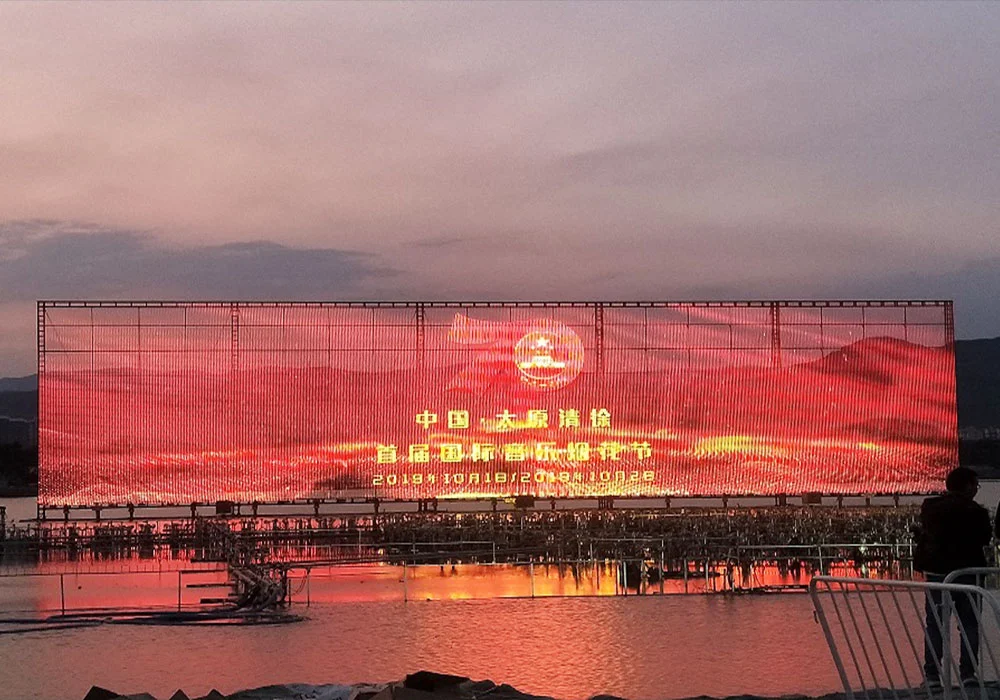

Large scale lake performance

Large scale lake performance

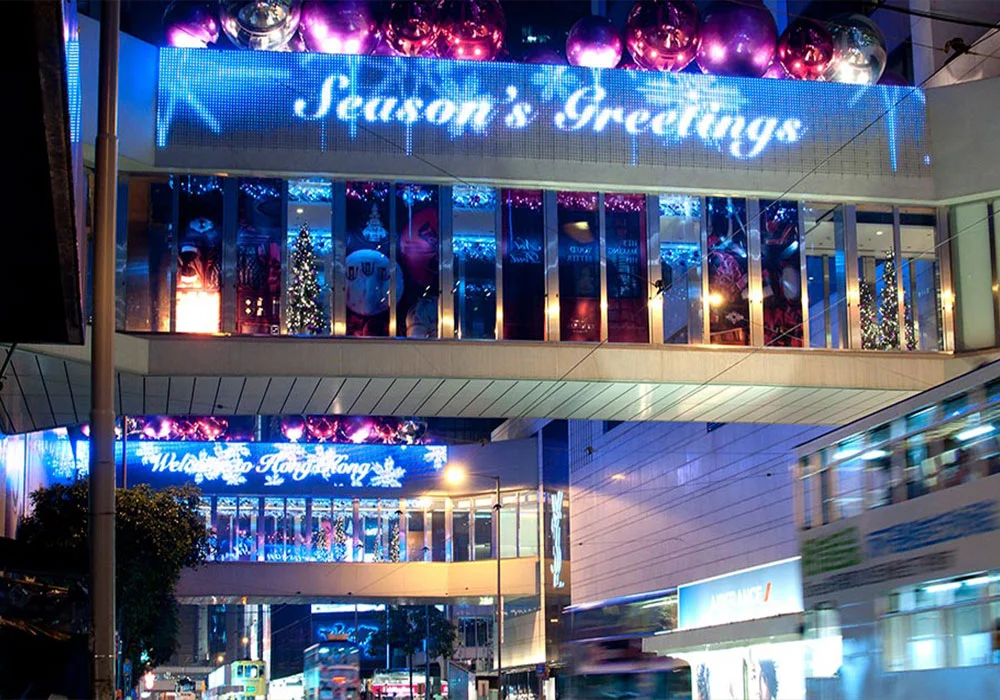

Commercial streets Lighting

Bridge Facade Lighting

Bridge Facade Lighting

LED Mesh Screen Applications Video Show

Through the led mesh screen actual engineering projects show different scenes application effects. These cases usually include lighting design schemes and actual renderings of such as city squares, parks, Bar, Hotel, Mall and building exterior walls. By understanding these cases, people can better understand the application of led mesh screen in practical projects and their beautification effect on urban night scenes. Kote Long Opto Co., Ltd has more than 700 application cases in the world, selling well in more than 60 countries and regions.
