Application

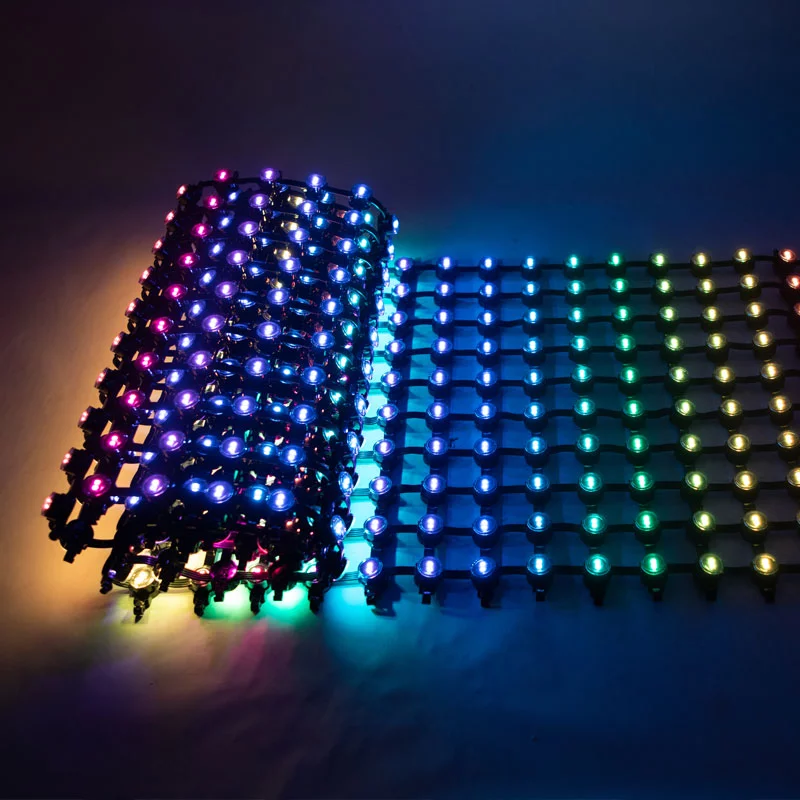

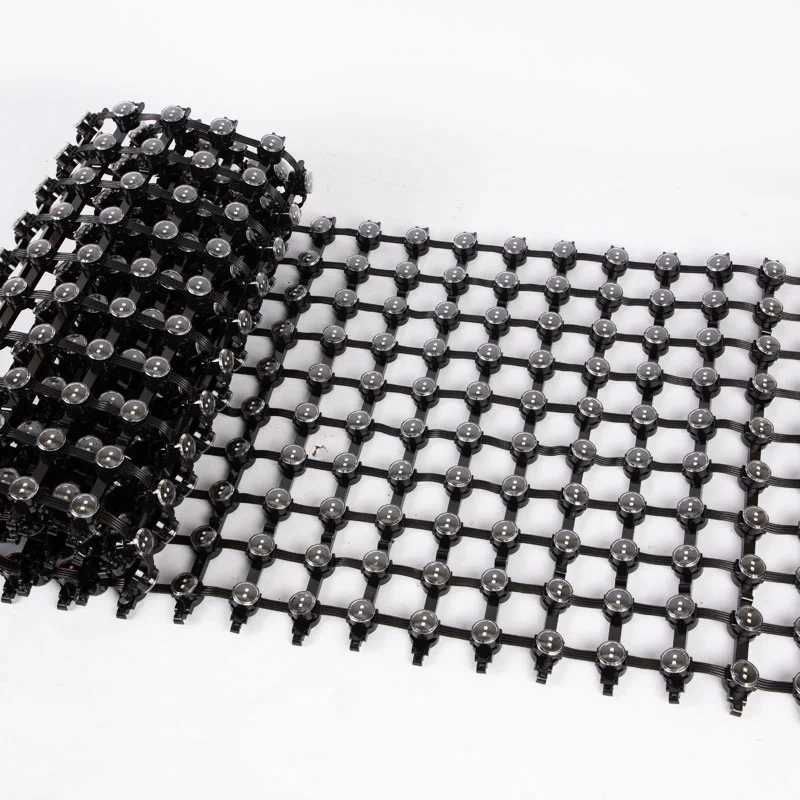

P42mm B Series Black Frame LED Curtain Screen

Pixel Pitch42mm
Pixel Density576 dot/m²
LED Type1 / 2 / 3 * RGB 3IN1 SMD3535
Brightness1500 / 2800 / 3500 (cd/m²)
Max. Power Consumption 280 / 350 / 500 (W/m²)
Ave. Power Consumption90 / 120 / 160 (W/m²)
Transparency70%
Viewing Distance10m~300m
Screen Weight5.8 kg/m²
Module Resolution8dots*250dots max.
Fire Protection RatingUL94-V0
IP RateIP67
Control SystemNovaStar
Dot Size20mm(L) * 18mm *18mm(H)
Viewing Angle120°(H)/120°(V)
Housing MaterialTransparent PC
Refresh Rate≥1920Hz
Gray Scale16 Bits
Working EnvironmentTemperature -30℃~+60℃，Humidity10~90% RH
Input (Working) VoltageAC110~ 240V, 50/60Hz (DC12V)
Scan ModeStatic Scanning

Inquire Now

LED Curtain Screen Features

Accesories

Hanging Beam

Stainless-Steel Wire Rope

Stainless U-Shaped Buckle

Stainless-Steel Wire Tensioner

NovaStar Controller

Rain-proof Power Supply

LED Curtain screen Quick Installation

Fast installation on the stage to save your time and labour. No complex frame required, when fixing the huge mesh screen on the building facade.

LED Curtain Screen System Connection

LED Curtain Screen After Install

LED Curtain Screen Projects

Commerical mall advertisement

Large scale lake performance

Commercial streets Lighting

Bridge Facade Lighting

LED Curtain Screen Applications Video Show

Through the led curtain screen actual engineering projects show different scenes application effects. These cases usually include lighting design schemes and actual renderings of such as city squares, parks, Bar, Hotel, Mall and building exterior walls. By understanding these cases, people can better understand the application of led mesh screen in practical projects and their beautification effect on urban night scenes. Kote Long Opto Co., Ltd has more than 700 application cases in the world, selling well in more than 60 countries and regions.
