Application

P120mm Mesh Screen for Stage Backdrop Screen

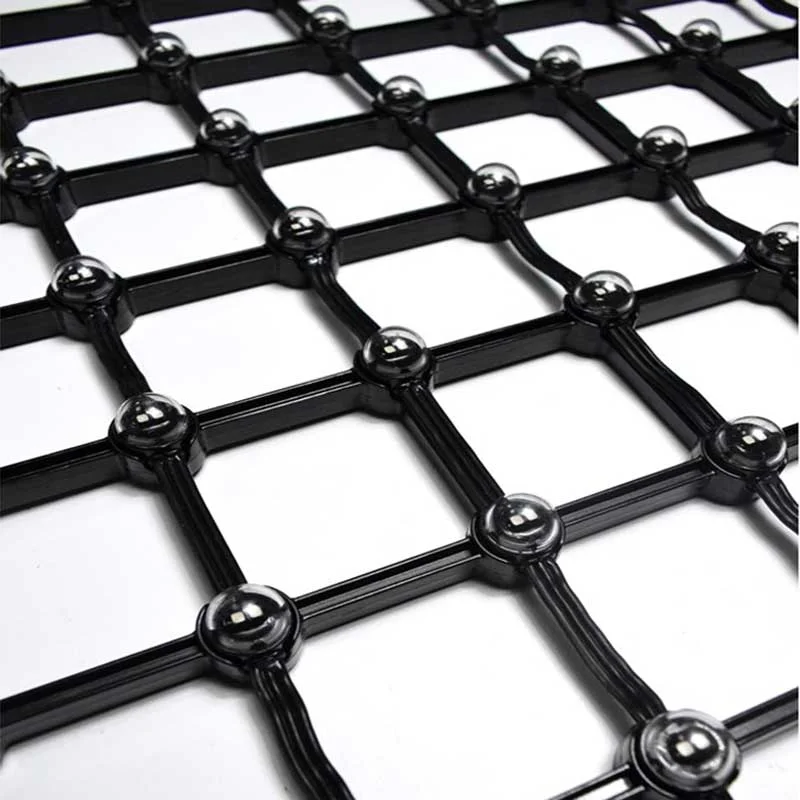

P120mm B Series Black Frame LED Mesh Screen

Pixel Pitch120mm
Pixel Density66 dot/m²
LED Type1 / 2 / 3 * RGB 3IN1 SMD3535
Brightness (cd/m²)180 / 300 / 420
Max. Power Consumption 30 / 40 / 50 (W/m²)
Ave. Power Consumption10 / 13 / 16 (W/m²)
Transparency88%
Viewing Distance25m~350m
Screen Weight2 kg/m²
Module Resolution8dots*250dots max.
Fire Protection RatingUL94-V0
IP RateIP67
Control SystemNovaStar
Dot Size20mm(L) * 18mm *18mm(H)
Viewing Angle120°(H)/120°(V)
Housing MaterialTransparent PC
Refresh Rate≥1920Hz
Gray Scale16 Bits
Working EnvironmentTemperature -30℃~+60℃，Humidity10~90% RH
Input (Working) VoltageAC110~ 240V, 50/60Hz (DC12V)
Scan ModeStatic Scanning

Inquire Now

Features

Accesories

Hanging Beam

Stainless-Steel Wire Rope

Stainless U-Shaped Buckle

Stainless-Steel Wire Tensioner

NovaStar Controller

Rain-proof Power Supply

Quick Installation

Fast installation on the stage to save your time and labour. No complex frame required, when fixing the huge mesh screen on the building facade.

System Connection

After Install

Projects

Commerical mall advertisement

Large scale lake performance

Commercial streets Lighting

Bridge Facade Lighting

LED Stage Backdrop Screen Applications Video Show

Through the led mesh screen actual engineering projects show different scenes application effects. These cases usually include lighting design schemes and actual renderings of such as city squares, parks, Bar, Hotel, Mall and building exterior walls. By understanding these cases, people can better understand the application of led mesh screen in practical projects and their beautification effect on urban night scenes. Kote Long Opto Co., Ltd has more than 700 application cases in the world, selling well in more than 60 countries and regions.
