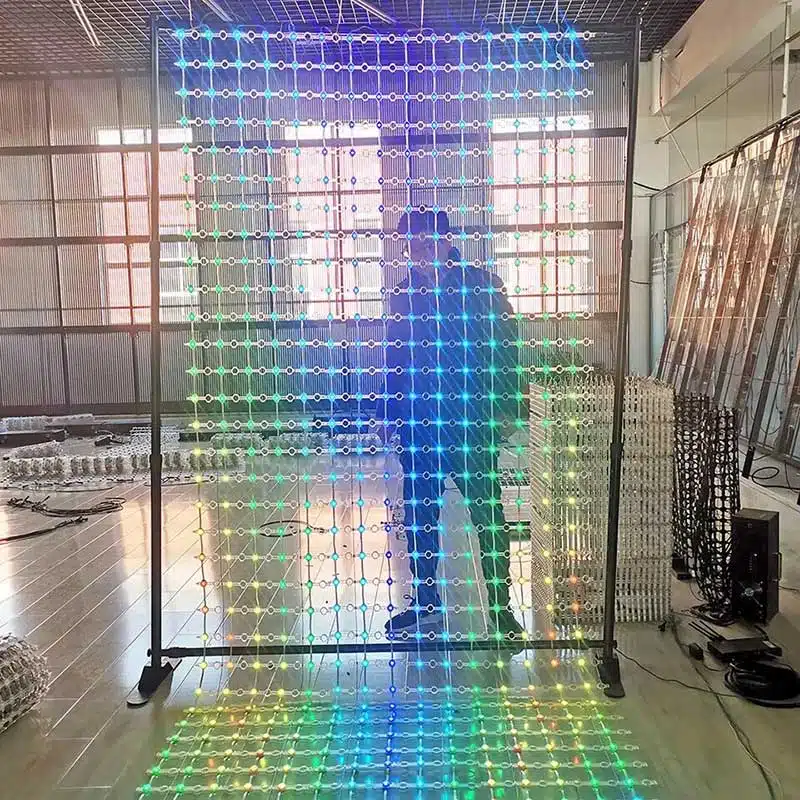

P100mm led mesh screenP100mm - A Series Transparent Frame

P100mm led mesh screenP100mm - A Series Transparent Frame

P100mm - A Series Transparent Frame

P100mm - A Series Transparent Frame

P100mm - A Series Transparent Frame

P100mm - A Series Transparent Frame

P100mm Building Facade LED Grille Screen for Glass Windows

P100mm A Series Transparent Frame LED Grille Screen

Pixel Pitch100mm
Pixel Density100 dot/m²
LED Type1 / 2 / 3 * RGB 3IN1 SMD3535
Brightness (cd/m²)250 / 400 / 600
Max. Power Consumption 45 / 60 / 90 (W/m²)
Ave. Power Consumption15 / 20 / 30 (W/m²)
Transparency85%
Viewing Distance25m~350m
Screen Weight2.2 kg/m²
Module Resolution8dots*250dots max.
Fire Protection RatingUL94-V0
IP RateIP67
Control SystemNovaStar
Dot Size20mm(L) * 18mm *18mm(H)
Viewing Angle120°(H)/120°(V)
Housing MaterialTransparent PC
Refresh Rate≥1920Hz
Gray Scale16 Bits
Working EnvironmentTemperature -30℃~+60℃，Humidity10~90% RH
Input (Working) VoltageAC110~ 240V, 50/60Hz (DC12V)
Scan ModeStatic Scanning

Inquire Now

Features

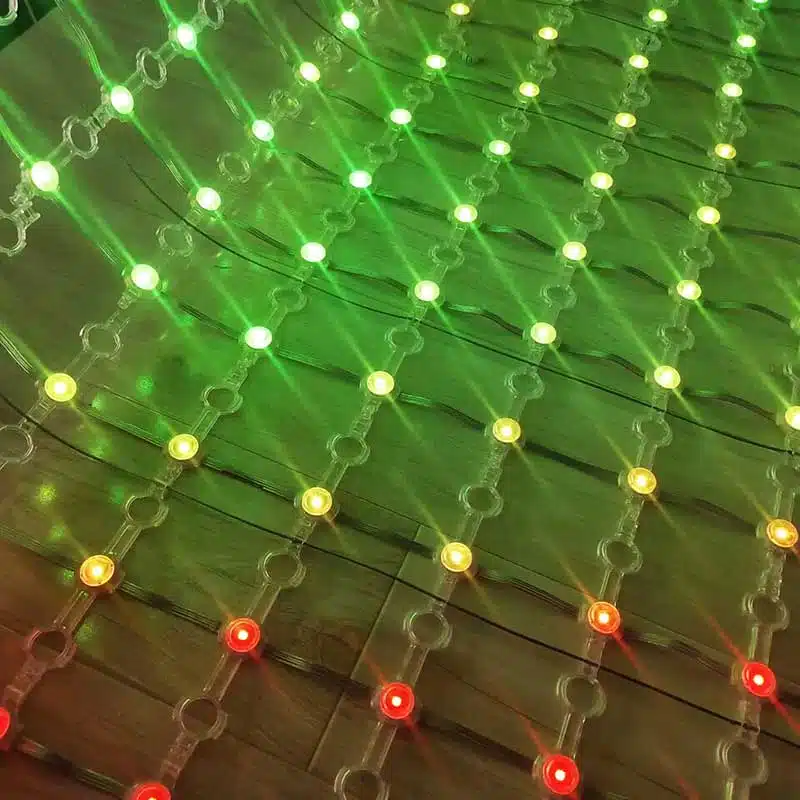

High Transparency

High transparency maximizes the natural light get inside of the building, flexible LED mesh screen also ensuring the screen has great ventilation and wind-resistance function.

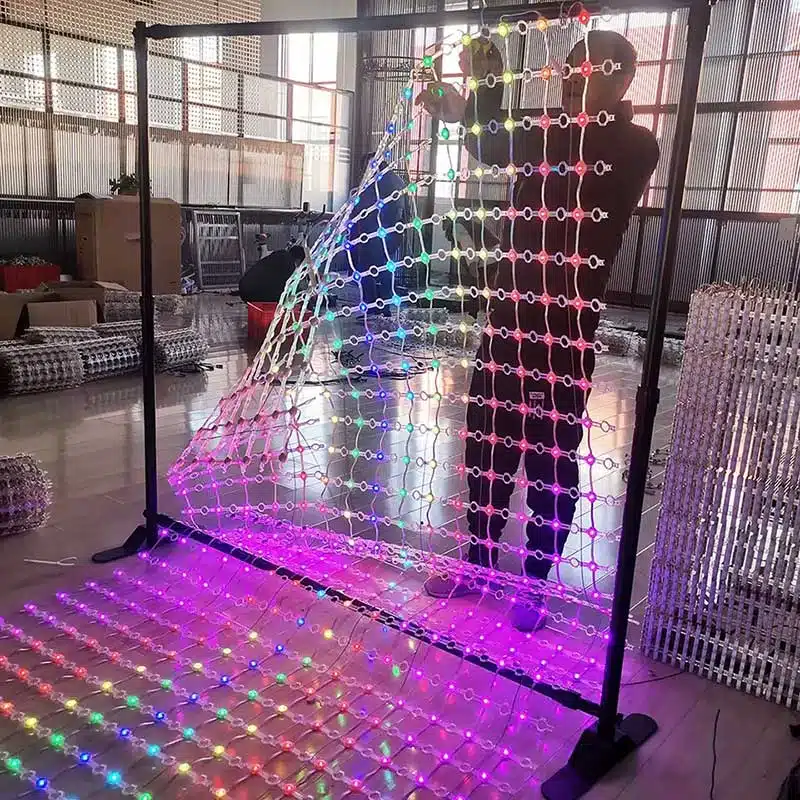

Flexible Design

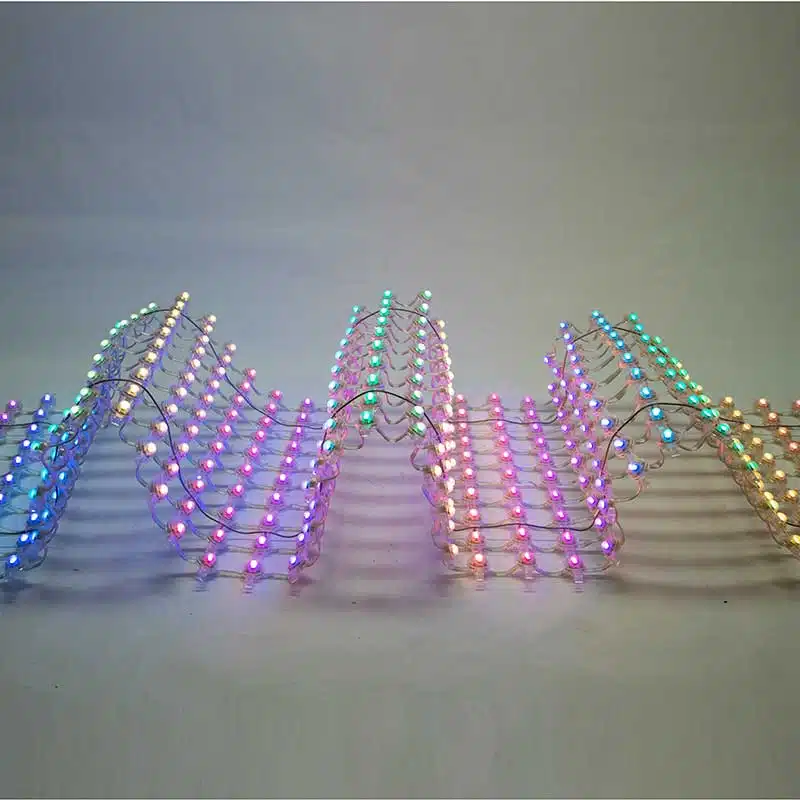

Ultra flexible design make it can be curved freely to achieve creative shapes like arch, circle, wave, customized size available. Bendable, shaped displays, coverage of various irregular structures.

Detachable Element

Removing the string directly from the flexible frame in front for quick and trouble-free maintenance. The strings can be also fixed as linear lighting separately in aluminum slot or in a independent bracket .

Fast Locks

Fast inter-panel locks make it quick and easy to set up and dismantle large-scaled screen, no tools required; Zipper quick lock system, The fast lock lock system makes your hanging job so easy even on the touring stage. Quick Installation

Anti-Fire & IP67 Waterproof

The Lamp body is sealed with silicone gel, Head and tail of the panel, with waterproof connectors.. Good Weather-resistance, is IP67 rated, UV-resistant, Housing and wire adopt Anti-fire material.

broken-point continuing

Broken-Point Continuing

Broken-point continuing transferring technology:if any middle pixel is broken, the left / right dots keep working well.With this design, any dead pixel on the large LED mesh screen will be not so obvious.

Accesories

Hanging Beam

Stainless-Steel Wire Rope

Stainless U-Shaped Buckle

Stainless-Steel Wire Tensioner

NovaStar Controller

Rain-proof Power Supply

led grille screen

led -grille screen

Quick Installation

Fast installation on the stage to save your time and labour. No complex frame required, when fixing the huge mesh screen on the building facade.

System Connection

After Install

Projects

Commerical mall advertisement

Large scale lake performance

Large scale lake performance

Commercial streets Lighting

Bridge Facade Lighting

Bridge Facade Lighting

LED Mesh Screen Applications Video Show

Through the led mesh screen actual engineering projects show different scenes application effects. These cases usually include lighting design schemes and actual renderings of such as city squares, parks, Bar, Hotel, Mall and building exterior walls. By understanding these cases, people can better understand the application of led mesh screen in practical projects and their beautification effect on urban night scenes. Kote Long Opto Co., Ltd has more than 700 application cases in the world, selling well in more than 60 countries and regions.
