Introduction

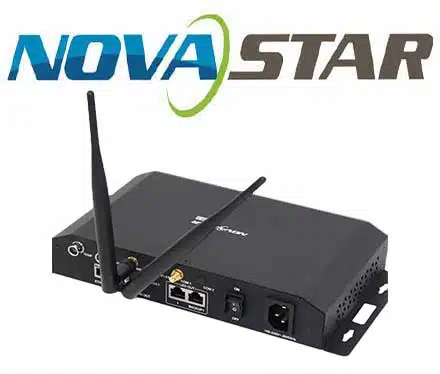

novastar Load capacity: 650,000 Processing power: 4 cores, 1GB +8GB memory WiFi function : √ 3G, 4G
function : √ Splicing load :
Use occasion : Indoor small fixed, transparent window display.
The Taurus series is Nova’s second-generation multimedia player for small and medium-sized LED full-color displays.
TB1 model products have the following advantages and can better meet user needs:
Supports 650,000 pixel loading capacity
High processing performance
Comprehensive control solution
Support WiFi AP connection
In addition to support for program distribution and display control on the PC, mobile phone, and local area network, the full-range control solution also supports remote centralized release and monitoring.
Taurus series products can be widely used in LED commercial display fields such as lamp pole screens, chain store screens, advertising machines, mirror screens, retail store screens, door head screens, car screens, and screens without PCs.
| Electrical Parameters | Input voltage | AC 100 V~240 V |
| Maximum power consumption | 15 W | |
| Storage Capacity | RAM | 1 GB |
| Internal storage | 32GB (28 GB available) | |
| Storage Environment | Temperature | –40°C to +80°C |
| Humidity | 0% RH to 80% RH, non-condensing | |
| Operating Environment | Temperature | –20ºC to +60ºC |
| Humidity | 0% RH to 80% RH, non-condensing | |
| Packing Information | Dimensions (L×W×H) | 335 mm × 190 mm × 62 mm |
| Dimensions (L×W×H) | 196.0 mm × 115.5 mm × 34.0 mm | |
| Net Weight | 304.5 g | |
| Operation System | Android 11 | |
| Network Communication | WiFi: 2.4G, Switchable AP&STA , 4G : Support(Option), LAN: 1000 Mbps | |
| Certification | CE EMC、LVD、ROHS、FCC、FCC ID、IC、RED、UKCA、UL、RCM、PSE、FAC、PSB、KC、MIC、CB、BTC | |
| IP Rating | IP20 Please prevent the product from water intrusion and do not wet or wash the product. | |
| System Software | Android operating system softwareAndroid terminal application softwareFPGA programThird-party applications are not supported. | |
Videos, animations, graphics, and real-time data (news, stocks, scores, and statistics) not only can feed in real-time, but also can schedule their presentation.
It has multiple interfaces including HDMI/DVI, WiFi, 4G, and USB for video streaming access.
Moreover, its advanced cloud-based content publishing system is capable of managing many LED mesh screens in different locations all over the world just from one central control room.
Sometimes, the users have multiple display systems both inside and outside their buildings. Then you could use Nova to tie all displays together into a single, unified communication and entertainment system.
1.2 Application Taurus series products can be widely used in LED commercial display field, such as bar screen, chain store screen, advertising machine, mirror screen, retail store screen, door head screen, on board screen and the screen requiring no PC. Classification of Taurus’ application cases is shown in Table 1-1.
